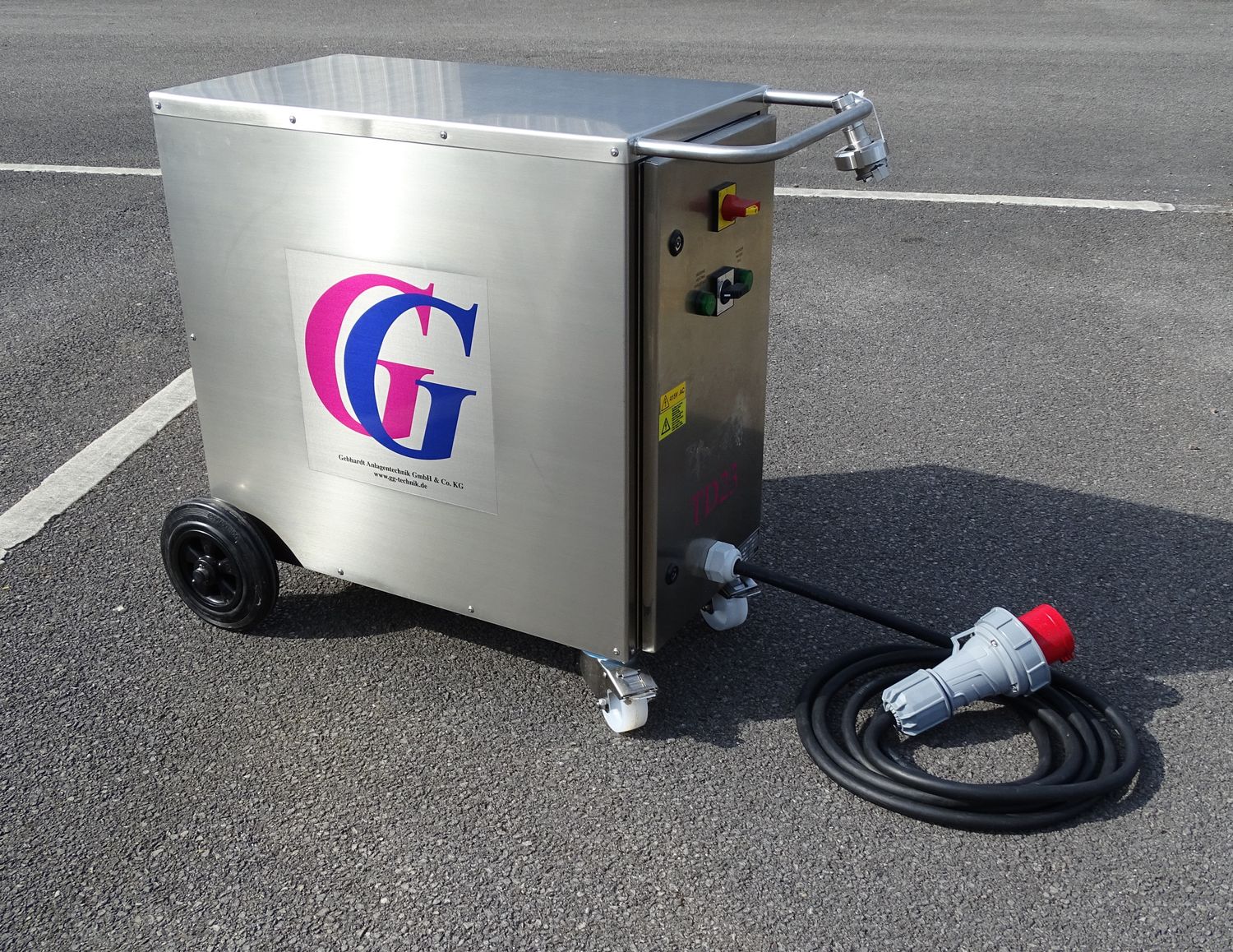

Steam Generator

SKU ABUK900
£0.00
1
Product Details

Description:

This steam generator is extremely fast with a continuous supply of steam.
 fully operational in 60 seconds
 always ready to steam
 continuous steam supply as long as needed
 water level monitoring to prevent water shortage and dry run
 simple to descale
These Turbo Steamers are optimal to be used in small to medium sized wineries or breweries.
They are used to sterilize filters and filling machines as well as clean and sterilize barrels, wooden fermenters and tanks.
Specification:
Models available: TD9 TD13 TD16 TD23 TD33
Electrical power rating ranging from: 9,9 kW - 33,0 kW
Amounts of steam ranging from: 15 kg/h - 50 kg/h
Max. steam pressure 2,5 bar
Min. water pressure 2,5 bar
Connection: 3 phase / N / PE 400 V AC 50 Hz
Mains cable approx. 5 m approx.
Fusing Ranging from: 16 A - 50 A
Electrical connector Ranging from: CEE 5 pol. 16 A - CEE 5 pol. 63 A


Please Contact us for more information on other sizes and prices.

Size:

Length 760 mm - 910 mm
Width 345 mm - 510 mm
Height 690 mm - 760 mm
Weight ranging from: 50 kg approx. - approx. 100 kg

When this item is out of stock, please contact us for information on new stock.
