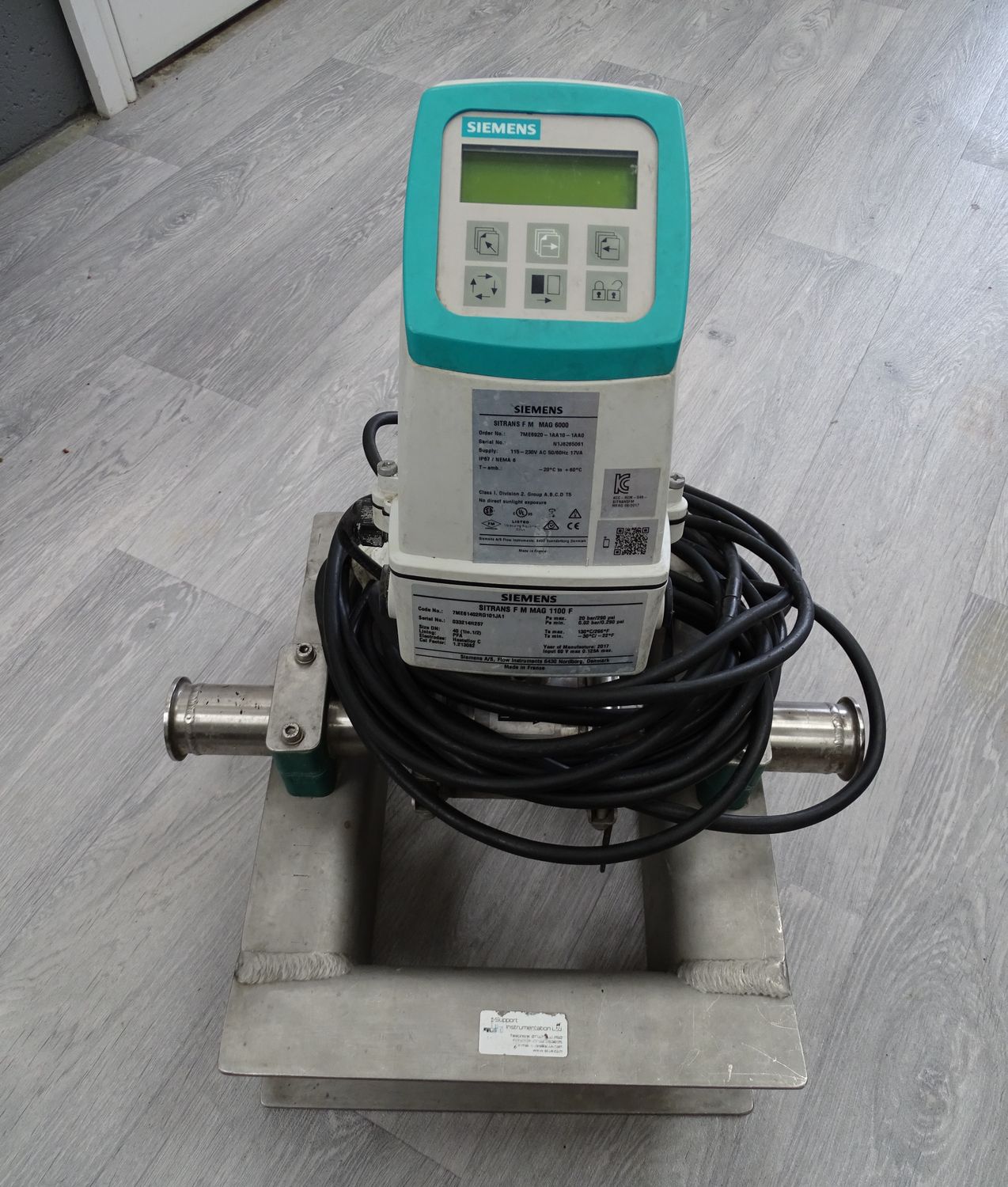

Brew Flow S - Flow Meter - SECOND HAND

MOBILE FLOW SYSTEM

The BREW FLOW - S is designed as a mobile flow system for the brewing industry and offers a reliable and effective solution to accurate flow measurement.

Choose which tank or part of the process you wish to measure, connect your flexible hoses to the inlet and outlet fittings and provide power to the meter and you are ready to go.

Use the BREW FLOW - S to accurately measure the efficiency of the brewing process by seeing the flow rate and total flow values.

The BREW FLOW - S uses the Siemens Electromagnetic flow meter and provides a maintenance free device with no moving parts, therefore the BREW FLOW - S will continue to perform accurate and repeatable results for many years.

Features

Hygienic design – Cleanliness assured

Sturdy and portable design – Move from tank to tank as required

Easy to read display of flow rate and total flow – Flow information to achieve the best optimised brew process

High Accuracy – Efficiency of the brew process saves money

No moving parts, no maintenance – Repeatable performance, long life, cost effective

Sanitary design and approved flow meter- Suitable for CIP / SIP cleaning, cleanliness and hygiene is maintained

Specification

Supply voltage: 115-230VAC via extension cable (not provided)

316 Stainless Steel flowmeter body

Stainless Steel base with adjustable feet

Stainless Steel inlet / outlet pipes included

Hygienic connections – 1.5" TRI CLAMP

LCD display – Displayed values of flow rate, and two flow totalizers

Displayed flow units - Selectable units HL, Litres, m3, gallons
