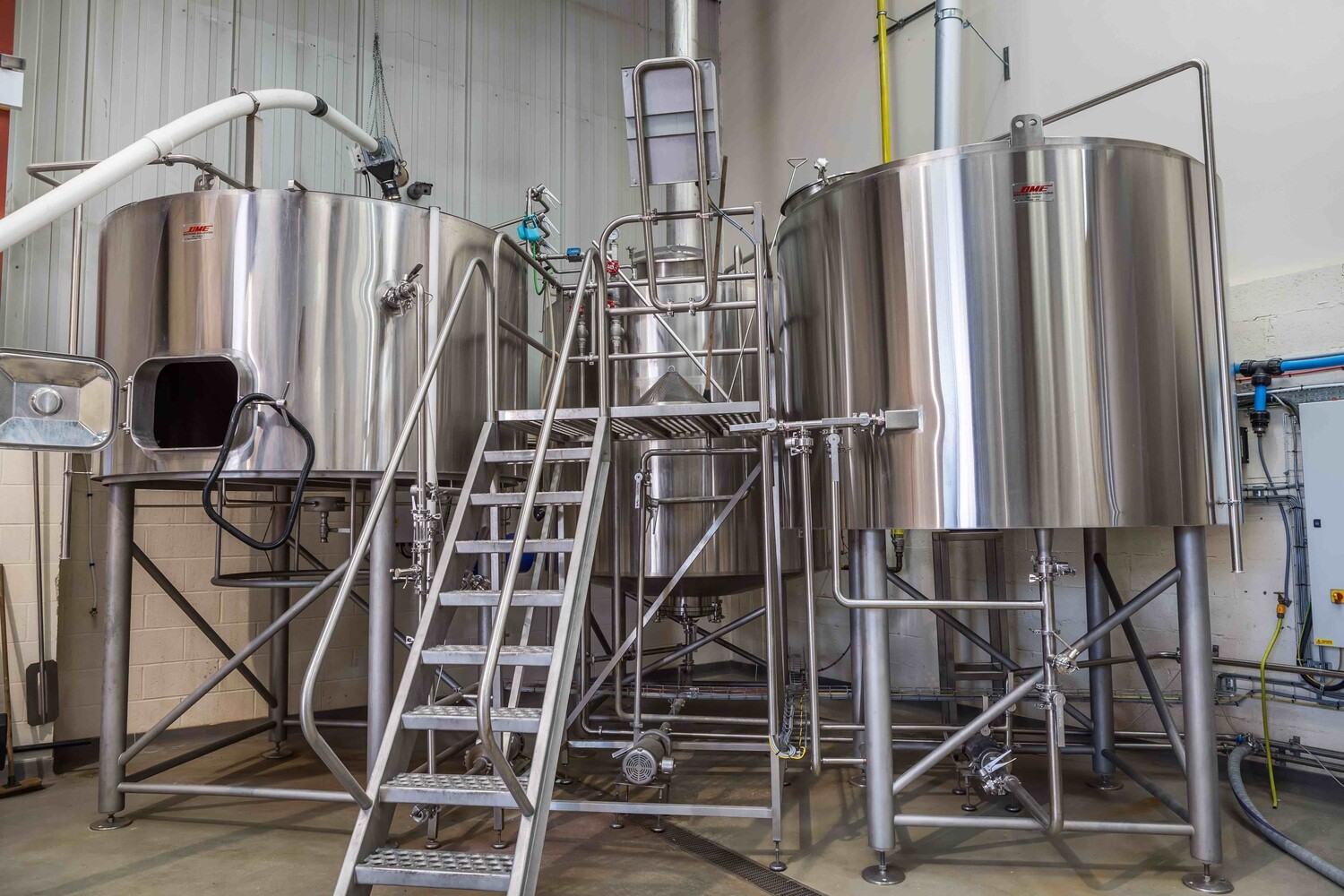

32HL/20BBL Complete Working Brewery
SKU ABUK054
£430 000.00
1
Product Details
Description:
RECENTLY Decommissioned – good condition
Brewhouse
Single infusion temperature Mash Vessel with Grist Hydrator, Gas fired kettle and separate whirlpool vessel suitable for whole hops and pellets
Grain Handling
Floor mounted Grist case with flexible grain elevator leading to Grist hydrator
Hot Liquor tank
10,000 litre vertical cylindrical vessel with stainless steel shell, shallow cone top and base. 2 x 18kW electric heating element, temperature pocket. 1.5 inch Tri Clamp outlet, Round Top Manway, all in T304. Free standing on stainless steel legs and feet . Insulated on the shell, clad in fully welded stainless steel 2.160,00 mm Diameter x 4.290,00 mm high
Cold liquor tank
Size and specification as per the above HLT but with a suitably sized external chilling panels
Liquor Blending System
Temperature indicator and mixing valves allow brewer to adjust brewing liquor temperature.
System includes Thermometer and inline thermometer mount, manual valve for hot liquor, manual valve for cooling water, flow meter, and pipe-work combining hot liquor and cooling water lines.
Stainless steel tubing and valve to kettle fill, sparge. A flexible hose is connected to the grist hydrator.
Mash Hydrator
Vertical 4” tubular construction with a 1” Water Feed to a hydration spray head.Complete 4” Butterfly valve to connect to feed tube and prevent steam rising back to the grist case
20 UKBBL/32HL Mash Tun
Mash Tun fabricated in stainless steel with , lift-up lids to the vessel top each piece with handles. Wedge wire type floor c/w handles and supported on an internal, stainless supports. Side entry, manway door finished flush with the floor level for ease of raking out. The vessel bottom of fully draining construction. The vessel is insulated and clad in stainless steel with a stainless steel bridge with sparge ,vessel. Supported on stainless steel legs,
Design pressure: Atmospheric, Shell material 304 s/s, Cladding material 304 s/s
Bottom fittings: Wort outlet, Wedge-wire false bottom
Wort Collection
A wort collection ring is fitted under the mash tun delivering to a pipe grant and then via a variable speed pump to the kettle.
20 UKBBL/32HL Gas Fired Kettle
Stainless steel vessel with top entry man way fitted with internal helical wound internal coil from stainless steel pipe work for ‘Lanemark’ type direct gas fired burner. The vessel is insulated and clad in fully welded stainless steel A perforated stainless steel plate hop retaining cone fitted to the inside of the vessel bottom and retained above a man way door for retention of whole flower hops.
Design pressure: Atmospheric
4 Legs c/w adjustable Footpads.
Shell material 304 s/s
Cladding material 304 s/s
Top fittings: Vapor vent, water inlet, stack drain, man way, recirculation fitting, CIP arm ending in a male RJT 0r tri clamp fitting, C/W spray ball/nozzle.
Side fittings: 1 of thermo well, stainless steel gas coil and connecting Flange.
Level Switch position for burner protection.
Bottom Fittings: Hop retaining screen.
Manway for hop removal and access.
Work Platform (3 vessel / 6FT(1.8M).
Stainless steel construction throughout.
Slip resistant fibreglass grating.
Handrails on stairs and platform.
Convenient working height for Brewhouse vessels.
Control panel can be mounted on the front railing next to the stairs.
Liquor Blending Station can be mounted on the rear hand rail.
Gas Burner for Kettle
Currently fitted with tows gas burner complete with all temperature controls, extractor fan and vapour stacks (subject to suitability)
Hop back
/whirpool -
20BBl/32HL capacity.
Hop seed strainer
In-Line Filter to retain Trub & Protein and protect the heat exchanger.
Heat Exchanger
20 UKBBL Heat Exchanger cold liquor/wort.
High efficiency plate and frame heat exchanger.
Sanitary Design.
316 stainless steel plates and connections.
EPDM gaskets.
Sanitary product connections.
Efficient heat recovery to hot liquor tank.
Wort Aeration Assembly
Comes complete with a sanitary stainless steel thermometer,
Sintered stainless steel aerating stone
1 1/2 " Sight glass, shutoff and check valves, quick disconnect for easy use.
Pumps
Cold Liquor, Hot Liquor, Mash Tun and CIP pumps, 3phase centrifugal with all stainless steel heads. With suitable Hot Mechanical Seals where required.
Wort Pump C/W VFD 50 HZ
Mash Tun Pump
1.5 HP motor
Stainless steel Pump Sanitary s/s head, inlet and outlet
This option provides a frequency inverter which is used to vary the r.p.m. of the pump. This allows the operator to match the pump curve to the system curve with a reduced requirement for throttling of control valves. The lower r.p.m. of the pump means the shear forces imparted on the wort by the pump impeller are also reduced.
Whirlpool Pump
Increased capacity pumps for whirlpool action and hop transfer
Brewhouse pipe work assembly/Valves/hoses
Fully welded stainless steel pipe work to connect the mash tun, kettle, under back, heat exchanger and wort pumps.
Piping (3 vessels- Mash Tun , Kettle & Whirlpool/Hop Back)
All sanitary piping is made of T304 s/s, which can be disassembled for Shipping.
All fittings, and s/s butterfly valves are included.
The piping interconnects the vessels.
Brewhouse Transfer System
Good selection of Brewers hose, tri-clamp ends/RJT ends
Fermenting vessels/conditioning tanks – 6 x Cylindro conical Unitank FVs – Vessels working capacity 65HL/40 BBL working capacity 7400 litres max Capacity
The vessels are pressure rated at 3 bar and fitted with cooling jackets,insulated 75mm PENOPLYURETHANE and clad in stainless steel.The vessels can be cooled in two/three zones, (Body and cone). The zones can be individually controlled by the solenoid and manual valves supplied with the electrical control system.The vessels have four stainless steel legs..
INCLUDED in the fermenting vessels :
1.Sample valve Kieselmann.
2.Vacuum valve Kieselmann.
3.Pressure gauge.
4.Safety valve Kieselmann.
5.CIP sprayball with pipe along side the outer jacket.
6.Spund valve Kieselmann.
7.Two butterfly valves on the outlets.
8 .Manway in the side.
Cask Washer
Basic manual unit Included
C.I.P Set
Portable twin tank C.I.P with electric heating element and on board pump
Chillers
A substantial oversized ICS full packaged chilling unit complete with a ring main to feed the cold vessels – is included the second hand price ( Customer to remove ring main which may or may not be reusable subject to layout and condition ).
Electrical Control Panel:
Included is a FULLY INTEGRATED 3 phase Brewhouse Operator Control Panel for the brew plant and all connecting cables are available subject to suitability of removal
This is all SECOND HAND ITEMs and is SOLD AS IS.
